Fully Automatic 1300 Model Paper Pile Turner Machine For Printed
Paper
Function:
Replace the tray, align the paper, Remove dust from paper, loosen
the paper, dry, Neutralize odors, take out the damaged paper,
center, and adjust the temperature, humidity and air volume.
1. Operability: two operation panels make manual operation more convenient.
The operation panel on the pile turner enables people to control
the operation process of the machine more intuitively and
conveniently:
Control the wind volume, align the paper pile back and forth,
adjust the clamping force and shaking force of the paper pile, etc.
2. Hydraulic system: temperature control device is used to prevent the instability of
hydraulic system in high temperature season and cold season.
Technical Parameter
| Model | PT1300 | PT1450 | PT1650 | PT1900 |
| Maximum paper size(mm) | 800*1300 | 1100*1450 | 1200*1700 | 1400*850 |
| Minimum paper size(mm) | 500*600 | 500*600 | 500*600 | 500*600 |
| Power supply | 3P 380V AC 50HZ |
| Machine weight(kg) | 3500 | 4800 | 6500 | 8000 |
| Max. weight of paper pile(kg) | 1000 | 1400 | 2500 | 3000 |
| Paper pile height(mm) | 800-1600 | 850-1600 | 850-1600 | 900-1600 |
| Total machine power(kw) | 10 | 12 | 14 | 22 |
| Machine size(mm) | 10600*2400*2750 | 11400*2600*2950 | 13000*2700*2950 | 13800*2900*2950 |
Performance characteristics
1. Flip the paper pile to replace the tray
Flip the original tray onto the top of the paper pile through the
flip function, which is convenient to manually take out the
original tray and replace it with other trays. Then flip the paper
pile back to its original position with the flip function
(especially when the paper pile is purchased and the tray is made
of wood).
2. Align the paper, Remove dust from paper, loosen the paper, dry,
Neutralize odors, take out the damaged paper, center, and adjust
the temperature, humidity and air volume, replace the tray.
Align: The paper is aligned by blowing (adjustable air volume) and
vibrating (adjustable vibration amplitude), which makes the paper
loose and removes dust and impurities in the paper pile (prolonging
the service life of the printer and improving the printing
clarity), and neutralizes the paper smell (playing an important
role in food packaging) by adjusting the air volume. The wind makes
the ink in the paper pile dry quickly and can adjust the
temperature and humidity, to prevent the quality and efficiency
from being affected by the warpage of the paper in the subsequent
production and processing process. In the process of paper
aligning, the damaged paper in the paper pile can be pulled out.
3. The machine can efficiently align the paper pile (about 3
minutes).
4. Automatic paper pile feeding and output function (optional).
Working flow chart
- Put the pile into platform of machine with hydraulic trolley.
- Turning up, rotating and tilting.
- Switch on the air jetting and vibration to remove duct(paper fiber,
paper scraps)separate the sheets, aligning and turning paper pile.
- The pile turner will come back to its original position, turn down.
The pile can be take out by the hydraulic trolley.

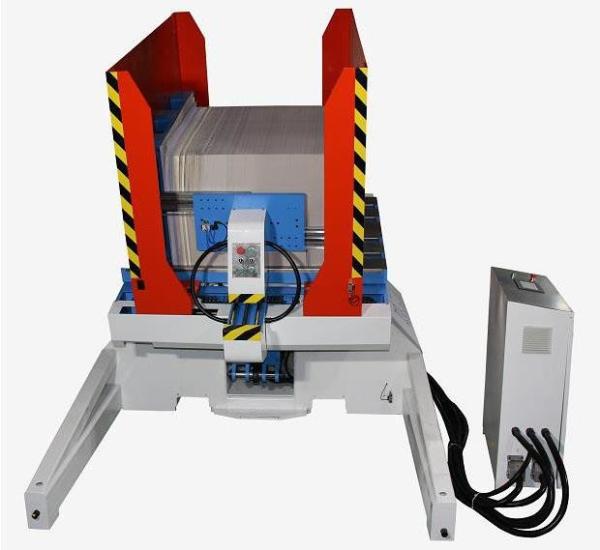

Machine Picture
